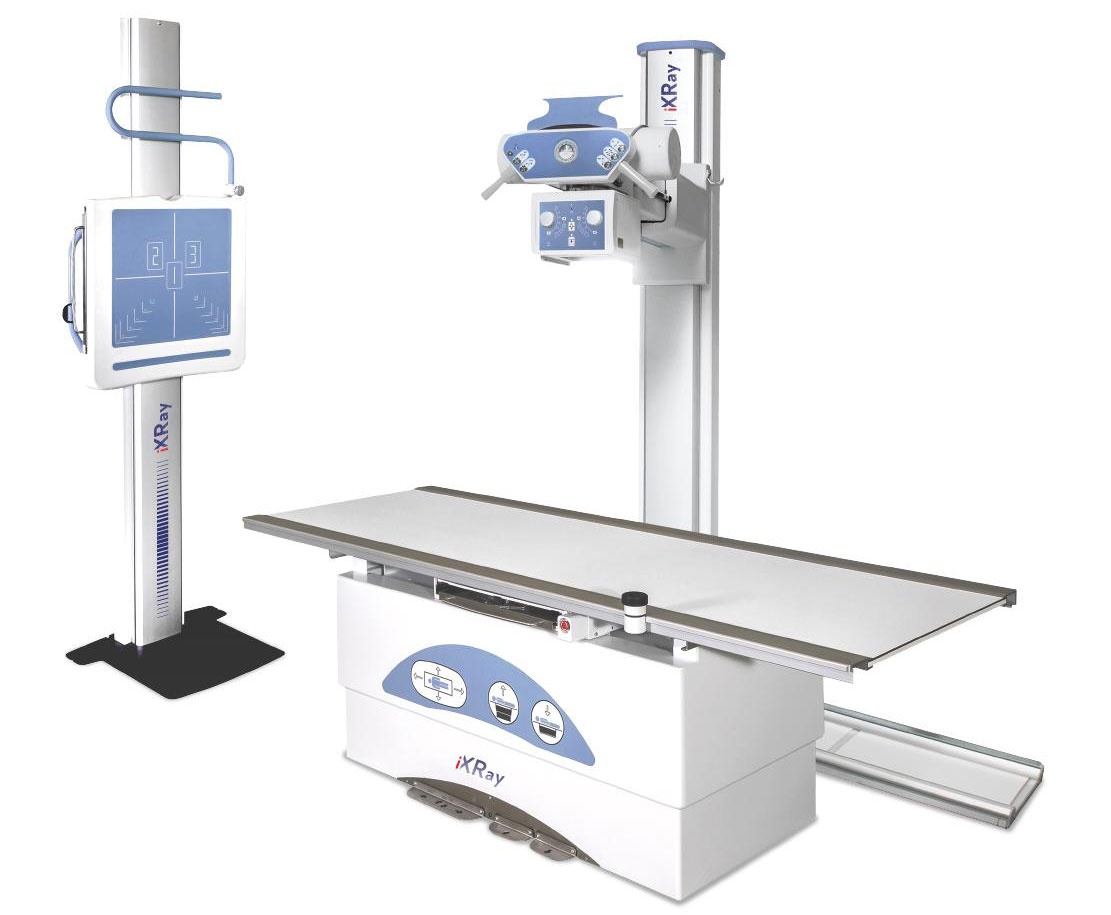

X-Ray System – iXray Vision 50

iXray Vision 50 is a premium stationary X-ray system manufactured by X-ray International SIA, a European developer and manufacturer of innovative systems for radiological diagnostics with headquarters in Riga (Latvia) and production facilities in Italy.

In terms of its functionality, the system belongs to an X-ray diagnostic complex for two workstations (the 1st place is the imaging table and the 2nd place is the vertical imaging stand). The system allows you to perform the full range of radiographic examinations. It is possible to obtain images both on an X-ray cassette with film and on a flat panel detector. The system is equipped with a table with a fixed tabletop height of 730 mm, a floating deck and two 43×43 cm digital X-ray detectors placed in the table and stand.

The system consists of the following components:

• 50 kW X-ray generator with capacitor bank
• X-ray tube
• X-ray imaging table with emitter column
• Vertical X-ray imaging stand
• Digital flat-panel X-ray detector (in the vertical stand and in the imaging table)
• X-ray raster
• Solid-state NPP exposure control chamber (in the table and vertical imaging stand)
• X-ray collimator
• Automated workstation (AWS) for the X-ray technician with X-ray generator exposure control.
• DICOM-enabled software

EVS 4343A – Digital flat-panel detector measuring 43×43 cm (wired connection).

• Fast workflow, image acquisition time of 2.9 seconds.
• Removable handle
• Comfortable and ergonomic design
• TRUVIEW®ART.

TRUVIEW®ART – an intelligent digital radiography processor that increases image contrast by 30% or more and has improved ability to detect microanomalies in the lungs, chest, and heart.

Main technical specifications:

• Generator power: 50 kW
• Power supply: Single-phase 230 V
• Imaging table type: Fixed height 730 mm with floating deck
• Tube voltage (max): 150 kV
• Anode thermal capacity: 300 kHU
• Focal spot size: 0.6 mm / 1.2 mm
• Detector type (EVS 4343A): a-Si, Csl
• Detector size (EVS 4343A): 43 x 43 cm
• Detector connection type (EVS 4343A): Wired
• Number of detectors included: Two (one in the imaging table, one in the imaging rack)
